FuriBee F90 Mini RC Racing Quadcopter With WASP Design

The new Furibee F90 Mini racing quadcopter is here. if you are looking for some character based mini fpv drone, this should be in your wish lists. Getting into the details, FuriBee F90 is a 90mm mini racing quadcopter drone with a wasp character design. (meaning: a social winged insect which has a narrow waist and a sting and is typically yellow with black stripes).

Furibee F90 Mini Rc Racing Drone

Indeed, Furibee F90 really resembles like a insect flying in the sky. Its amazing propulsion system can be powered by 30C battery, and its brushed F3 flight controller supports 1 - 2S power supply. More importantly, it is integrated with an omnipotent receiver which is compatible with various protocols.

The Carbon Fiber Frame


The frame is well designed to equip the three tier propellers and the core body along with the coreless motors  in order avoid any impact during flight. below are few important feature of the shell

  • Premium full carbon fiber, ultralight and amazingly sturdy
  • The special shape of wasp is cute and different
  • Excellent heat dissipation design in the center
  • Accurate mounting holes for 8520 coreless motors

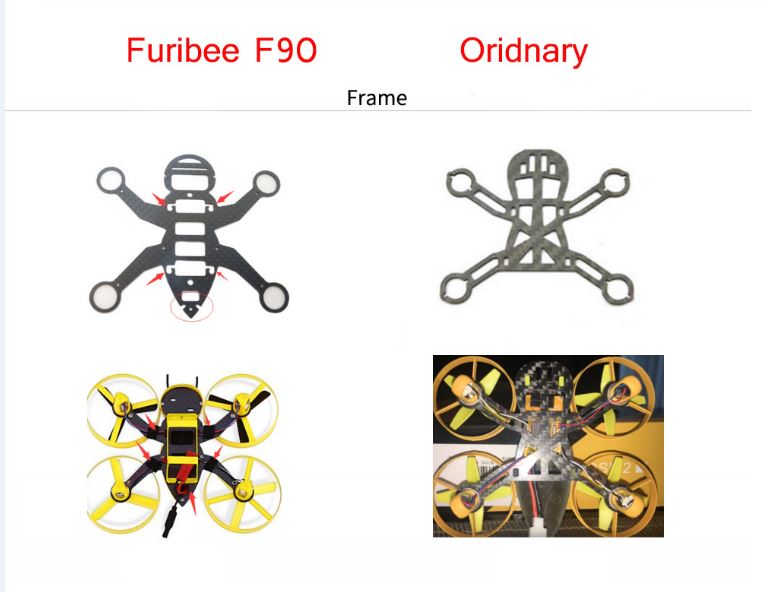

Furibee F90 Frame

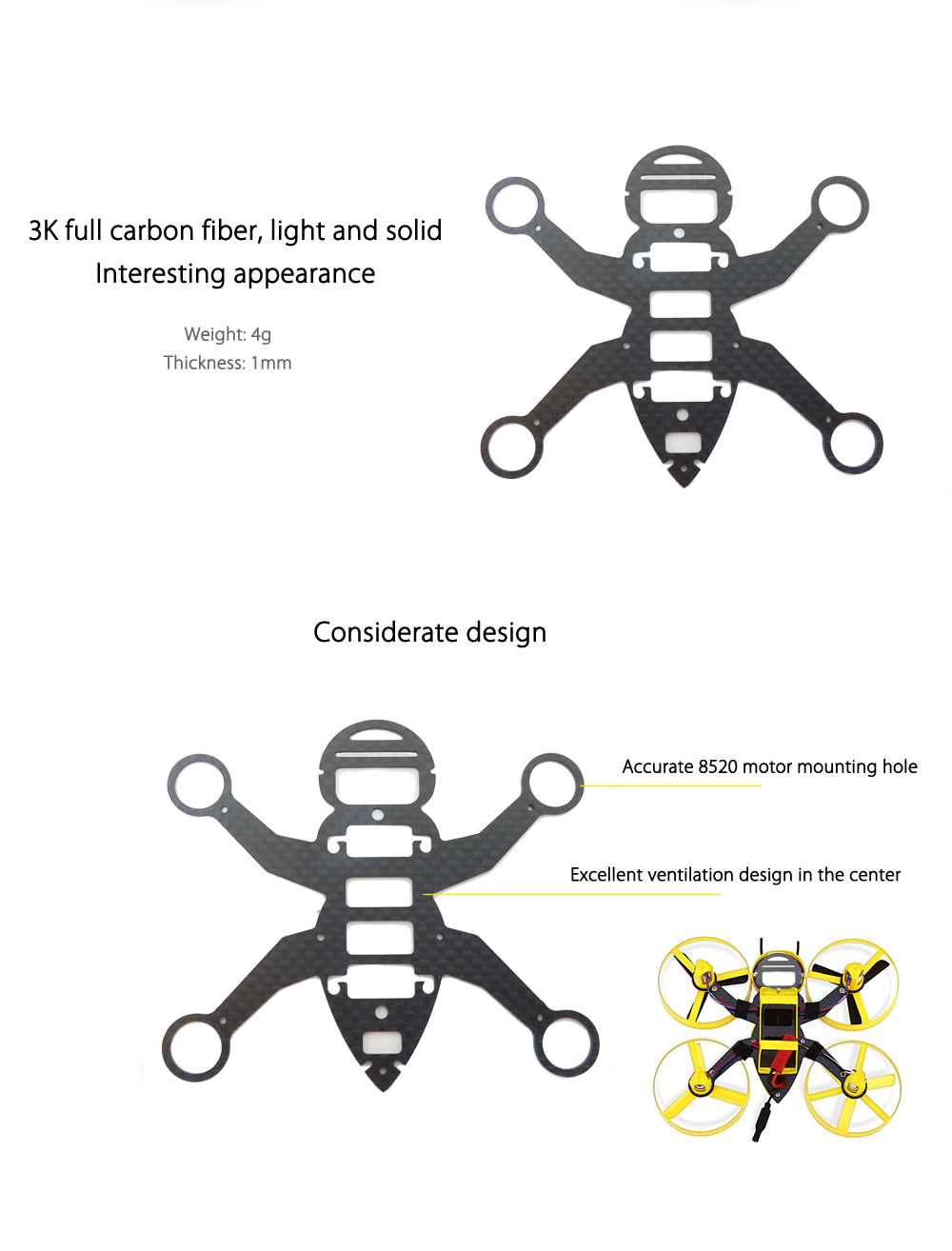

furibee f90 Carbon fiber Frame

Flight Controller


the flight controller integrates 6050 gyroscope, which helps to keep the balance of the drone, it has the ability to buzz out during low voltages and ensures it lands safely before the battery is completely dried out, if compared with the ordinary flight controller systems this is one of most handy features of today's quadcopters and drones, to get them land safely.

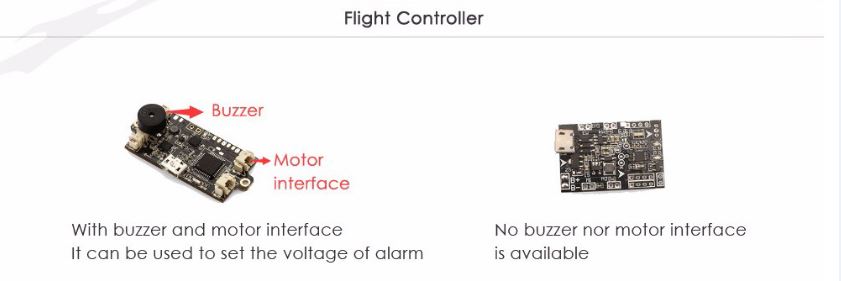

Furibee F90 Flight Controller


Exceptional Propulsion System


The ultra light coreless motor, has the ability to rotate upto 5200 times with the sufficient voltage input, in addition, the 35c discharge ability of the lipo cells allow the 90 mm wasp-like flyer to maneuver freely at higher speeds.

Main Features and Specifications of Furibee F90 mini Racing FPV Quadcopter


SP Racing F3 EVO Brushed Flight Controller
  • It can be powered by up to three LiPo cells
  • Supports signal input of PPM, SBus, DSM receivers
  • Equipped with a buzzer and you can set the voltage of alarm
  • MPU6050 Gyro / Accelerometer
  • Micro USB connector for programming

Omnipotent 8CH DSM Receiver

Compatibility: DSMX / DSM2, JR, Horizon, Walkera and Spectrum remote controller ( As for beginners, it is recommended to use the DSM2 transmitter. )
Distance: 1.5km ( outdoor ) / 150m ( indoor )
Voltage: 3.0 - 3.6V
Size: 9.5 x 1mm

DSM receiver supports a good number of protocols, including DHT, DFT, DJT, XJT, X9D Plus and X9e, well optimized for indoor and outdoor racing. when compared to the ordinary receiver, furibee DSM receiver is small in size, measuring 9.5 x 1 mm and weighing as low as 0.5 grams which contributes to the overall weight of the mini quadcopter. when it comes to the receiving distance, its 1500 meters outdoors and 150 meters indoors!

Furibee F90 Receiver



8520 Coreless Motor
Motor diameter: 8.5mm
Motor length: 20mm
Output shaft diameter: 1.0mm
Output shaft length: 5mm
Weight: 5gms
Voltage: 3 - 5V
Current: 0.15A
RPM: 35000 - 37000 ( 3V ), about 50000 ( 5V ), 52000 ( 7.4V )

Propellers
44mm three-blade

Battery
400mAh 7.4V 2S 35C ( included )

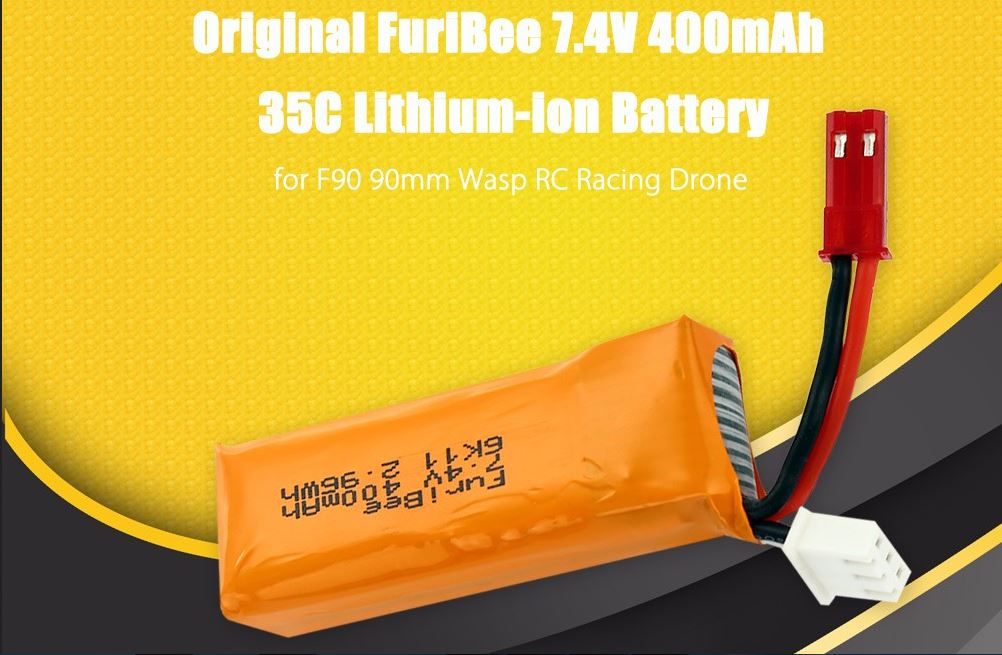

The battery has no ordinary design. Technically, it is 2 cell 7.4 volts 400 mah powered lithium battery provisioned with a JST connector to power the mini drone and the XH-3P connector to get the battery recharged, and compatible with most of the balance chargers.

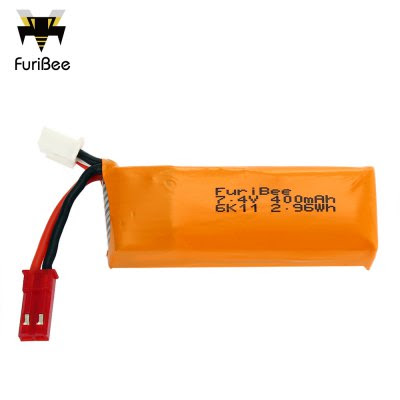

Furibee F90 Battery


Camera and Video Comparison
Resolution: 600TVL
FOV: 120*
Frequency: 5.8GHz
Channels: 40
Outout Power: 25mW
Transmission distance: about 100m

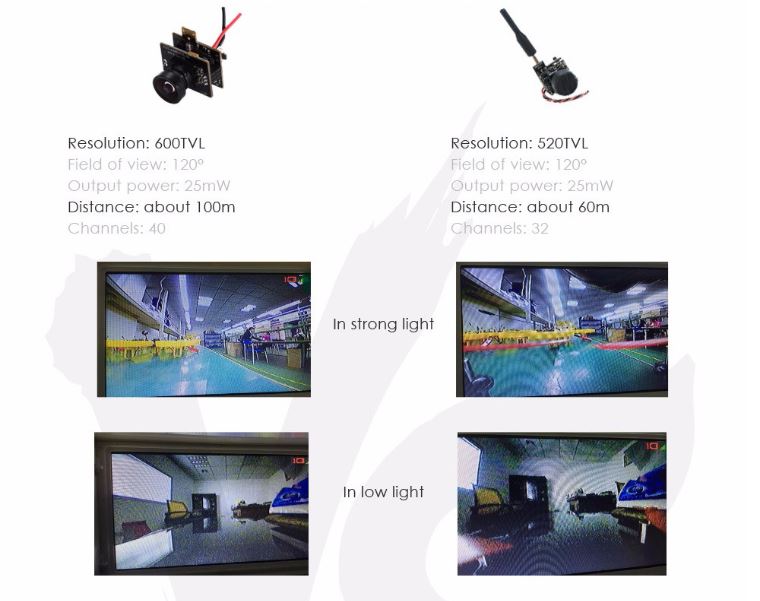

When compared to other cameras, F90 Camera offer 120 degrees field of view with 40 channels frequency and the control distance of the FPV images is about 100 meters, which is quite exception for a mini drone of this size, checkout the below comparison chart.

Furibee F90 600TVL Camera

The 600 TVL camera seems to performing well in the low light conditions when compared to the standard fpv cameras that ship with the mini quadcopters, the color reproduction system of the camera is great for the price that is being offered - quite impressed.

FuriBee F90, is it worth?


If you want to have some real FPV fun indoors, the WASP designed FuriBee F90 is worth giving a try. Use the coupon code: beef90 to get the Furibee Version 1 for $85.99

Parts: furibee F90 parts are easily available from Gearbest, right from the DIY KIT , additional battery to the three blade propellers - discover here!
